DM Series
Timeless
Design

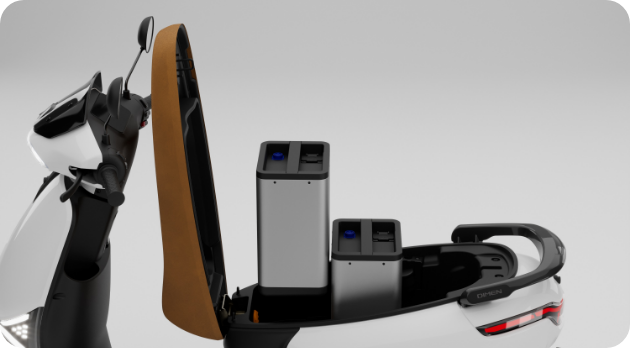

Dual 72V 40Ah Battery Power That Lasts
Automotive-grade 18650 cells for 200 km of reliable range. Choose dual or single battery setup to balance distance and storage.

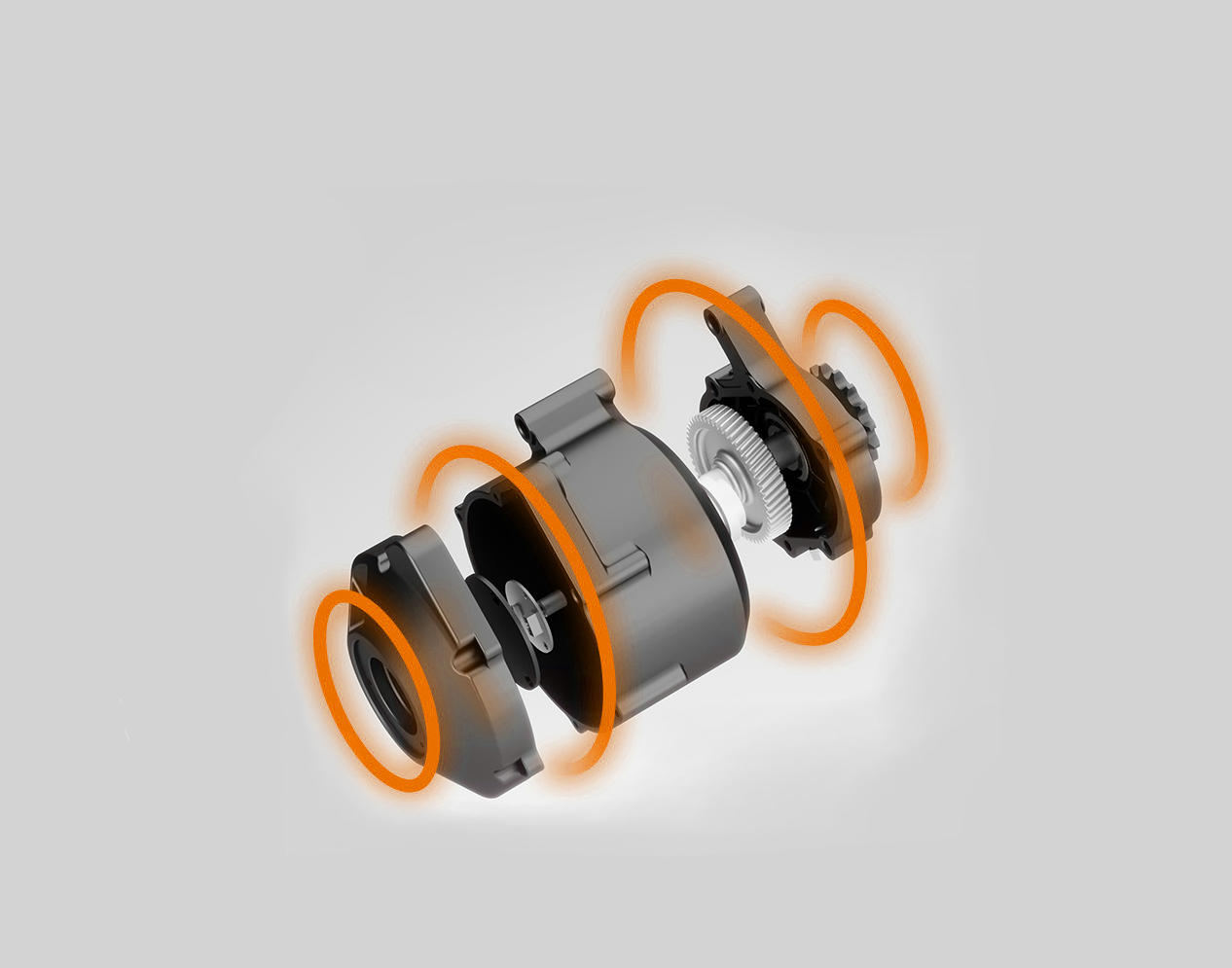

Permanent Magnet Synchronous Motor
The mid-drive system provides balanced weight, a peak 150 N·m torque, and smoother rides even when fully loaded.
Vector Sinewave Controller
High-performance controller compatible with high-power motors, offering precise speed control, smooth acceleration, and seamless integration.

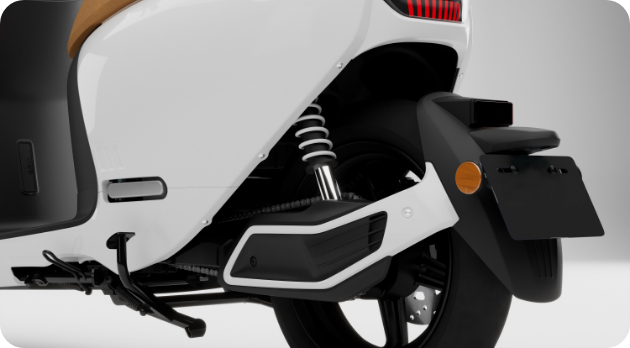

Front & Rear Hydraulic Damping Suspension
With precisely calibrated damping travel, the hydraulic suspension effortlessly absorbs bumps and vibrations, delivering a smoother, more stable ride across all kinds of terrain.

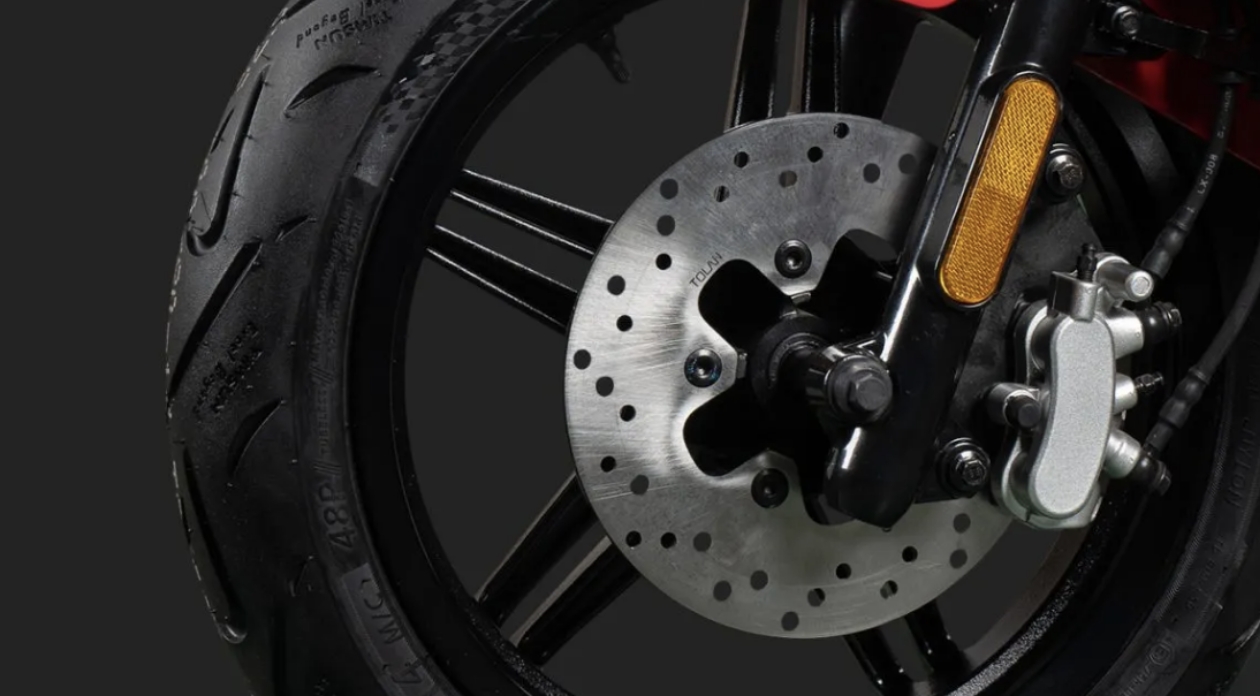

CBS and Tire Pressure Safety Systems
Combined Braking System (CBS) shortens your stopping distance. Tire pressure sensors make sure that the tires are filled up to the optimal level.

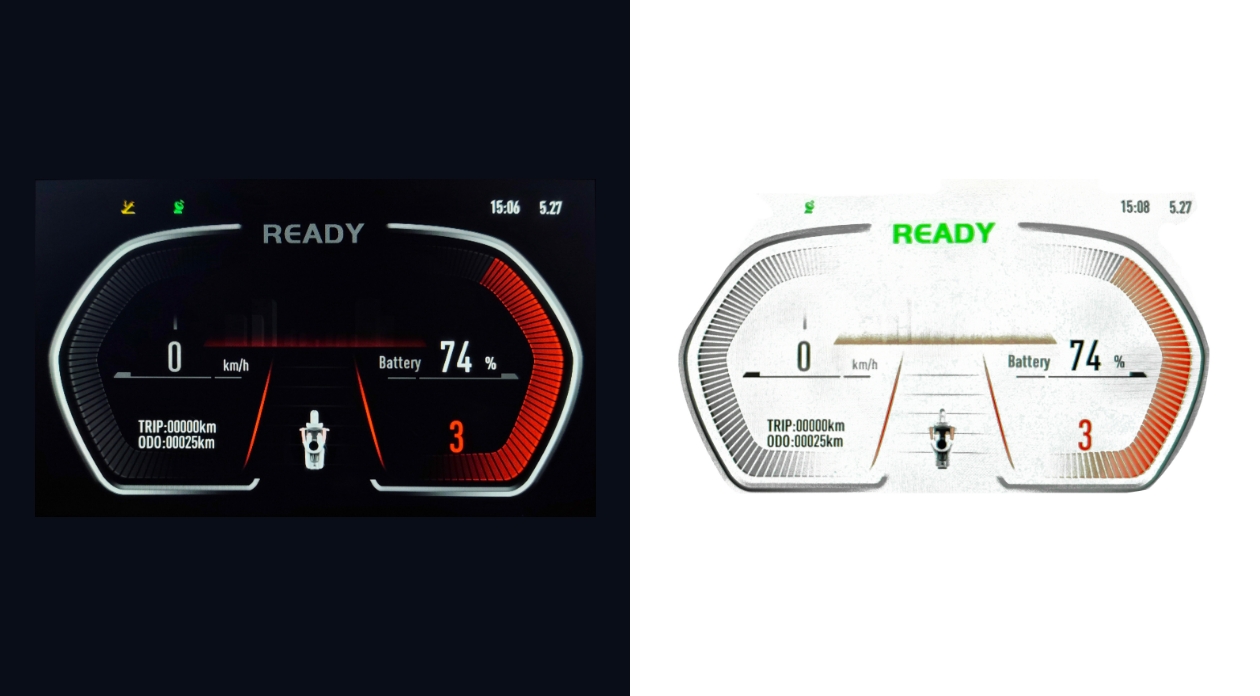

lntelligent instrument
High-precision digital display meter with real-time monitoring and data logging capabilities. Ideal for accurate measurements in various applications
NFC + App Unlock
Tap and go with NFC, or unlock remotely using your smartphone app.
E-Mark Certified Lighting
Full LED lighting setup meets international road safety standards.

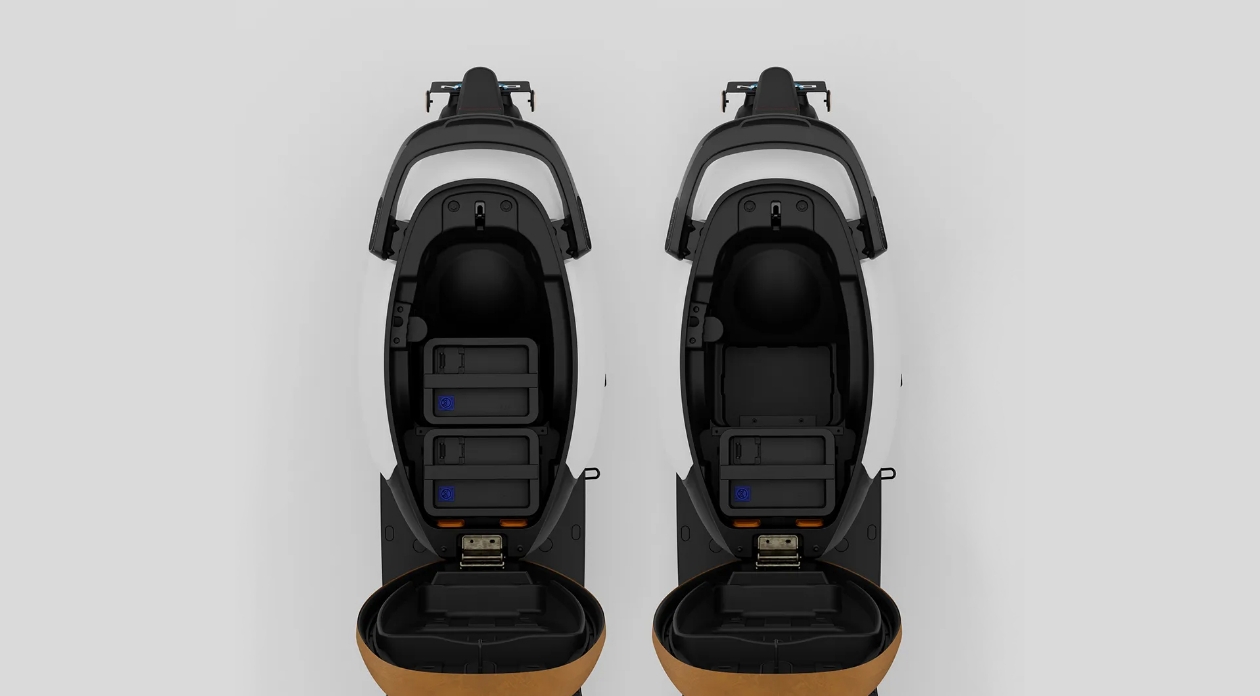

Single Battery, Bigger Space
Opt for a single battery setup to maximize storage capacity.
Configuration
| Category | DM-E1 | DM-E3 |
| Max Speed | 45Km/h | 95Km/h |
| Max Range | 160Km(Two Batteries) | 200 Km(Two Batteries) |
| Max Climb Capacity | 10° | 15° |
| Max loading Weight | 230 Kg | 241 Kg |
| Waterproof level | IP65 | IP65 |
| Battery Type | Removeable NCM Lithium | Removeable NCM Lithium |
| Battery Cell | 21700 | 21700 |
| Battery Capacity | 72V30Ah(2.16Wh) | 72V40Ah(2.88kWh) |
| Battery Weight | 14.5Kg | 18.3Kg |
| Second Battery | √ | √ |
| Motor Type | Hub Motor | Centralized Motor |
| Motor Rated Power | 2 Kw | 3.5 Kw |
| Motor Peak Power | 2.4 Kw | 5.8 Kw |
| Max Torque | 60 N.m | 150 N.m |
| Controller Type | FOC | FOC |
| Charger Input Voltage | 220V/110V | 220V/110V |
| Charger Power | 72V10A(Optional Fast Charger 15A) | 72V10A(Optional Fast Charger 15A) |
| Charging Time | 3H(Optional 2H) | 4H(Optional 2.7H) |
| Unlocking Type | Remote Control+Key | Remote Control+NFC+Key |
| Brake Type | – | CBS |
| Display Type | TFT | TFT |
| USB | √ | √ |
| Vehice Size | 1970*705*1215 mm | 1970*705*1215 mm |
| Ground Clearance | 133 mm | 133 mm |
| Tyre Size | Fr.100/80-14 / Re. 110/70-13 | Fr.100/80-14 / Re. 110/70-13 |
| Tire Pressure monitoring | × | × |
| Communication Protocol | CANbus | CANbus |
